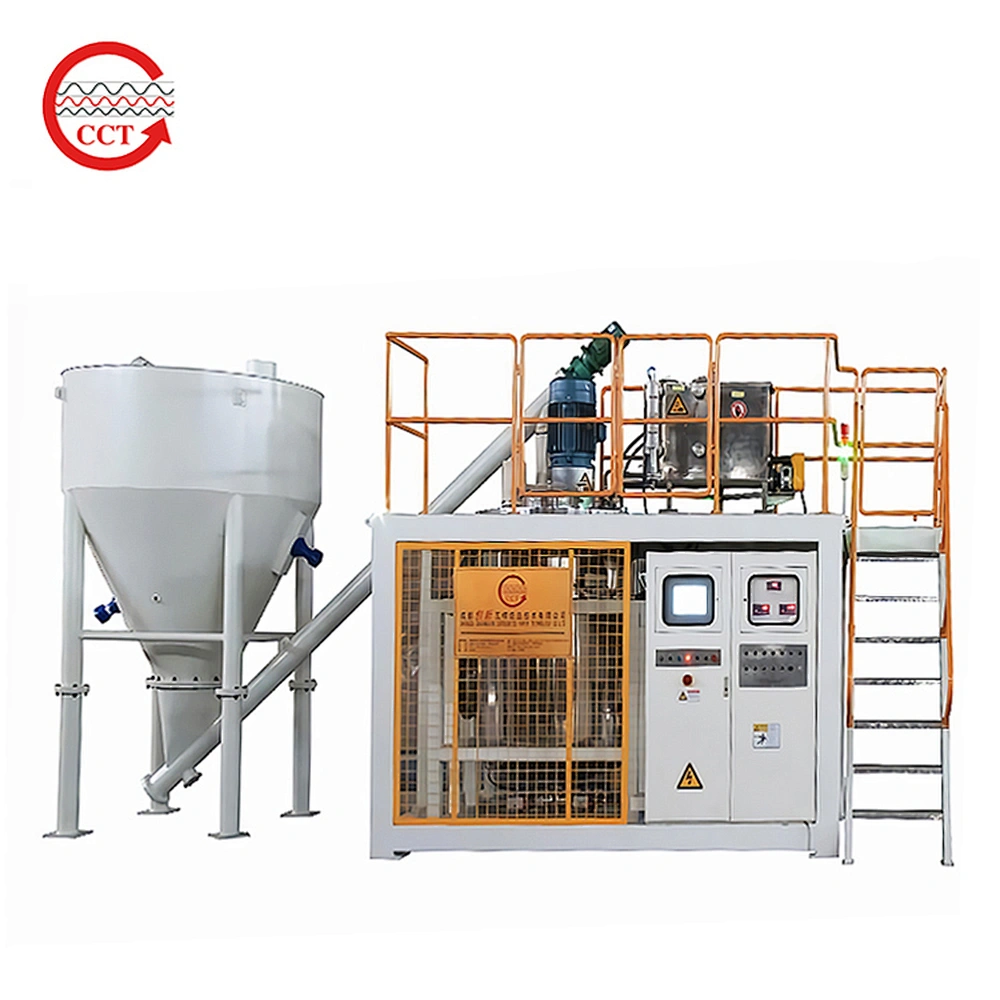

Fully Automatic Starch Kitchen
Fully Automatic Starch Kitchen
Characteristic Features
The CHJ series machine are upgraded from the basic original model CQJ series.
The important characteristic features are:
1.High Shear Mixer (stainless steel).
2.A conic shaped preparation tank (stainless steel) with high quality load cells (TOLEDO, U.S.A.).
3.All components built in one skid.
4.PLC-controls with manual overrides and scale units.
5.Local touchscreen for machine operation.
The CHJ series machine are upgraded from the basic original model CQJ series.
The important characteristic features are:
1.High Shear Mixer (stainless steel).
2.A conic shaped preparation tank (stainless steel) with high quality load cells (TOLEDO, U.S.A.).
3.All components built in one skid.
4.PLC-controls with manual overrides and scale units.
5.Local touchscreen for machine operation.
Quantity
- Small batches, always fresh glue.
- Flexible batch sequencing.
- Exact dosing of ingredients.
- Automatic overshoot correction.
- Low maintenance and commonly available parts.
- On-line service support.
InnovationTechnology
- The processing technology of information formula-----A mode of operation result oriented, according to the total amount of glue, solid content, viscosity, gelatinization temperature, and then, the system automatically generates and operation the formula to make glue automatically.
- High precision variable frequency conveying material system-----Using frequency conversion control, add borax, additives, etc., precise control add, error control between 0~ 0.1kg, unique design add system.
- Unique high efficiency making glue system technology-----Combined with non-formula adhesive, a kind of making glue method specially developed for foreign market environment and material characteristics.
- Pioneered viscosity gelatinization control system-----The use of stainless steel detection tank, viscosity sensor, viscosity controller, unique modular design.
- Fault self-checking system technology-----When the system electrical fault, the system automatically determine the fault location of electrical components, rapid replacement and maintenance.
- Zero emission environmental protection glue making technology-----The waste water of the cleaning board line is pumped back into the special recovery tank, and fully utilized in the process of making glue. The system will automatic testing the PH value, to keep stable viscosity and the gelatinization temperature.
Warranty:12 months free after installation acceptance
Application:corrugated cardboard industry
Place of Origin: Sichuan, China.
Payment:All the payment can negotiate, generally by T/T or L/C.
Delivery: 45-55 days after receipt of your downpayment
Packing &. Transportation
Packaging Material: plastic, plywood case, air bubble film packaging with moisture protection.
Sea Container:40HQ
Loading Port: Shanghai, Chongqing.
