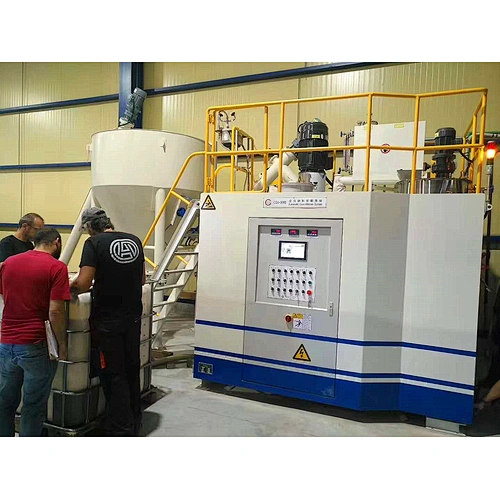

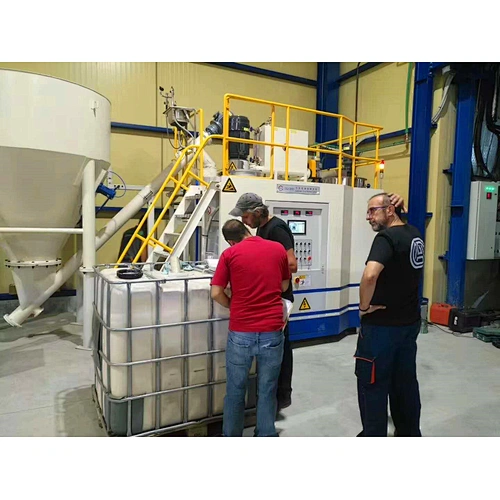

CQJ-3000 Corrugated Cardboard Gluing Machine
CQJ-3000 Corrugated Cardboard Gluing Machine
Technical parameters
Specifications
Processing technology both carrier &.no-carrier
Glue capability 800-1600kgs/hour
One batch production time 30-50min/tank
Tank material stainless steel or carbon steel (Customized)
General power 32KW
Compressed air pressure 0.5-0.8Mpa
Max air consumption 0.68m3/min
Steam pressure 0.2-1.2Mpa
Installation Dimension 9500*3700*4000mm
Total weight about 4.5T
Specifications
Processing technology both carrier &.no-carrier
Glue capability 800-1600kgs/hour
One batch production time 30-50min/tank
Tank material stainless steel or carbon steel (Customized)
General power 32KW
Compressed air pressure 0.5-0.8Mpa
Max air consumption 0.68m3/min
Steam pressure 0.2-1.2Mpa
Installation Dimension 9500*3700*4000mm
Total weight about 4.5T
Quantity
Main features:
1. The machine may not use additives, however, it guarantees better penetrability and stabilization of glue.
During glue production process, agitating is more intense because of the high-speed sheering system. The saw-teeth blades can destroy the starch molecular directly to make the starch granular much smaller, the secondary starch molecular surrounding those carrier starch can penetrate into paper more easily, and it can catch the fiber of paper when gelatinization. Besides, traditional propelling agitating blades are designed to guarantee the intensity and uniformity of agitation to ensure the stabilization of glue.

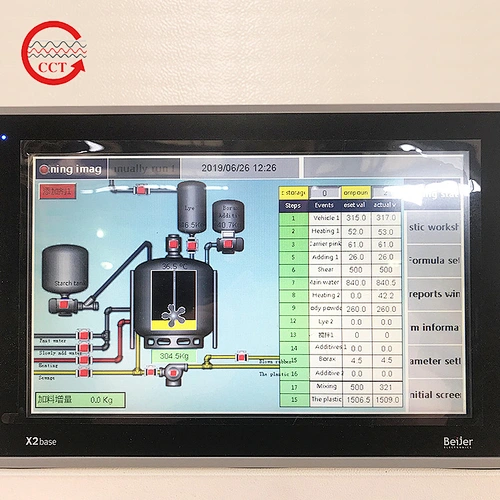

2. All system is controlled by program, which is devised and developed according to actual needs of different corrugated board factories.
（1）Material is measured and added automatically.
All feedings are set through program, controlled by PLC and measured precisely. The quality of glue enjoys excellent steadiness comparing to traditional glue making process as a result of human factor.
（2）Temperature is under control.
The glue temperature can be controlled by Temperature Sensor and Temperature Display to maintain the glue quality against changeable surrounding temperature and assure starch melt in water easily.
（3）This machine is programmed with automatic wash tanks procedure. After finished one batch, it will flush main tank with water. Manual flush is also available.
（4）Glue storage tank is equipped with level sensor. If the level is lower than limits, PLC will automatically select the correct formulation and reproduce.
（5）Time of shearing and agitating will be controlled by PLC.
（6）Alarm functions are available in case of starch lacking, caustic lacking ,feed breakdown, over heat ,system breakdown and so on.
3. Production capacity reaches up to 800-3200kgs per hour. Compared to the traditional equipment, it needs shorter production time and meet high-speed corrugator line.
4. Imported diaphragm Pump enjoys high efficiency and low air consumption.
Machine introduction
Application:corrugated cardboard industry
Warranty:12 months free after installation acceptance
Place of Origin: Sichuan, China.
Packaging Material: plastic, plywood case, air bubble film packaging with moisture protection
Payment terms, delivery and after-sales service
® Payment:All the payment can negotiate, generally by T/T or L/C.
® Delivery: 45-55 days after receipt of your downpayment
® Service:24 hours online support, 15days on-site installation &. Operation training
