Cardboard Adhesive Making Machine
Cardboard Adhesive
This Full-Auto (No-carrier method) glue making system is making starch adhesive for corrugated cardboard producing line.
Quantity
Detail description
1. Mixing system

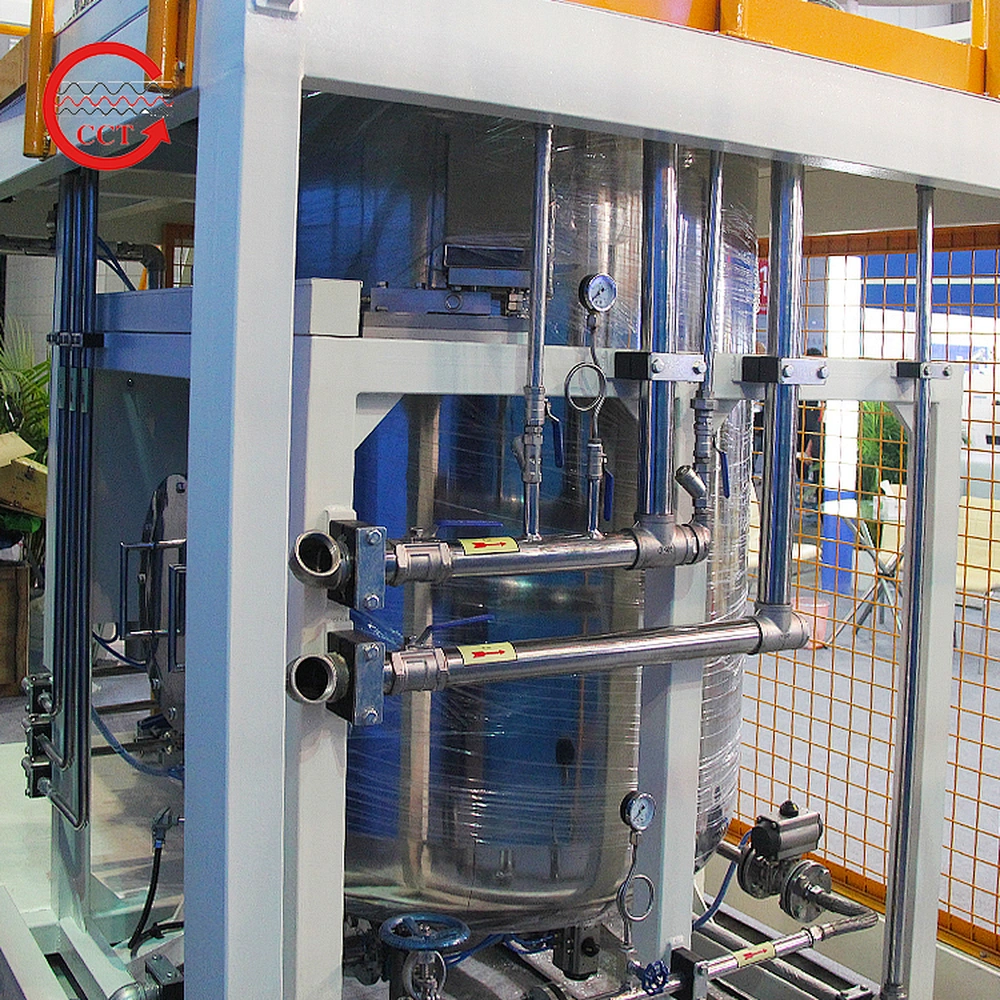

(1) Special mirror treatment surface stainless steel tank. Include the main mixing tank, transit tank, caustic storage tank.
(2) 22/KW mixing motor accompany with erect type mixing system
(3) 2 sets of 3 groups high -accuracy load cells, strictly control the weight of material using
2. Frame work platform
(1) Q235-standard carbon steel with plastic spraying surface
(2) Riffled plate platform with guardrail & staircase
3. Control software system

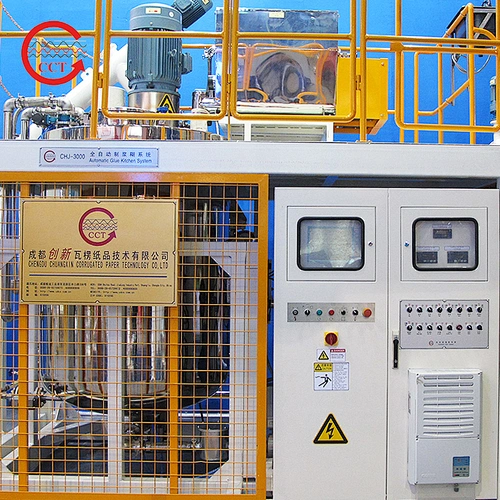

(1) A set of main control cabinet
(2) Support the function for motor error protect and system error alarm
(3) Siemens PLC Controller
(4) Siemens interface displayer
(5) Electrical parts from Aritac, Taiwan
(6) Special software, easy for familiar and using. All formulas, parameters protected by 3 level passwords
4. Automatic Viscosity (seconds) testing system
(1) Special viscosity (seconds) control system
(2) Self-cleaning system (viscosity meter, all relative pipes and mixing tank) , Wastewater reused for glue making.
5. Borax & additions self-adding system
(1) Provided Automatic anti bridging device for all tanks, avoid material adding error cause of humid
(2) Three groups independent load cell, efficiently control the weight of borax, caustic &additions feeding
6. Self-adding lye system
(1) High durability import diaphragm pump (USA GRACO)
(2) Stainless steel storage tank
(3) Automatic adjusted the volume of secondary lye feeding by RYHT software, According the weather's & temperature's change
7. Automatic steam system
(1) Added a set of temperature control system & ball valve steam controller
(2) Alarm for temperature abnormal
8. Self-water adding system.
(1) Available water source: tap-water & reuse the water form equipment cleaning or both.
(2) Tap water & reuse water Self switchover, avoided water lacking.
Main Specifications
Certifications
Packing &. Transportation
1. Mixing system
(1) Special mirror treatment surface stainless steel tank. Include the main mixing tank, transit tank, caustic storage tank.
(2) 22/KW mixing motor accompany with erect type mixing system
(3) 2 sets of 3 groups high -accuracy load cells, strictly control the weight of material using
2. Frame work platform
(1) Q235-standard carbon steel with plastic spraying surface
(2) Riffled plate platform with guardrail & staircase
3. Control software system
(1) A set of main control cabinet
(2) Support the function for motor error protect and system error alarm
(3) Siemens PLC Controller
(4) Siemens interface displayer
(5) Electrical parts from Aritac, Taiwan
(6) Special software, easy for familiar and using. All formulas, parameters protected by 3 level passwords
4. Automatic Viscosity (seconds) testing system
(1) Special viscosity (seconds) control system
(2) Self-cleaning system (viscosity meter, all relative pipes and mixing tank) , Wastewater reused for glue making.
5. Borax & additions self-adding system
(1) Provided Automatic anti bridging device for all tanks, avoid material adding error cause of humid
(2) Three groups independent load cell, efficiently control the weight of borax, caustic &additions feeding
6. Self-adding lye system
(1) High durability import diaphragm pump (USA GRACO)
(2) Stainless steel storage tank
(3) Automatic adjusted the volume of secondary lye feeding by RYHT software, According the weather's & temperature's change
7. Automatic steam system
(1) Added a set of temperature control system & ball valve steam controller
(2) Alarm for temperature abnormal
8. Self-water adding system.
(1) Available water source: tap-water & reuse the water form equipment cleaning or both.
(2) Tap water & reuse water Self switchover, avoided water lacking.
Main Specifications
| Model | CHJ-3000 |
| Tank material | SUS304 |
| General power | 32KW |
| Production capability | 800-3200Kgs |
| Machine size | 9500×3700×4000mm |
| Weight | 4.50Tons |
